Fakro High Pivot roof window

• Made of vacuum impregnated pine wood double-coated with acrylic lacquer
• Elegant handle placed in the lower part of the sash provides ease of operation and
• two-step micro-opening facility
• installed in the roofs with pitches between 20º and 65º along with flashing
• complemented with a wide variety of additional accessories
• 10-year warranty
• FLASHING KITS ARE USUALLY NECESSARY FOR ROOF WINDOW INSTALLATION AND ARE AVAILABLE FOR TILE OR SLATE ROOFS UNDER RELATED PRODUCTS

Please click on an image below to download a flyer



Windows Ahead of Their Time

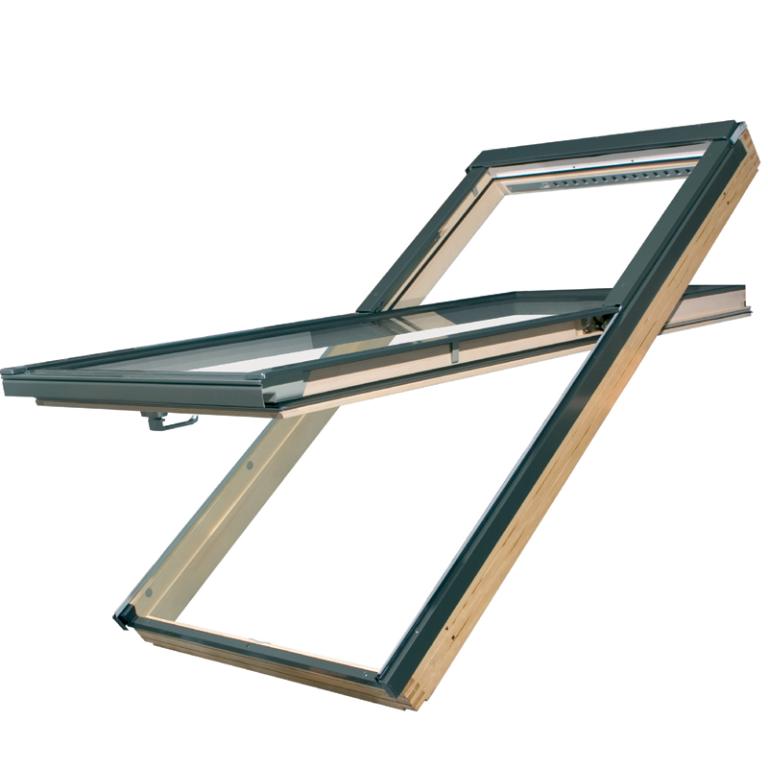

The FYP-V window is opened in a pivot mode but its axis of rotation is situated above the center of the window, thanks to which even a tall person can approach the window's edge without any difficulties. The lower part of the sash fulfills the role of a top hung window and the upper one acts as an additional source of daylight. It is the only window on the markets which after installation in the roofs with pitches between 39º and 43º satisfies the conditions of DIN 5034-1* standard, according to which the lower edge of the window should be situated 95cm and the upper one minimum 220cm above the floor level. The sash when rotated through 0º- 45º is held up by an innovatory support mechanism which allows leaving the window open in any position within this range. Equipped with an automatic air inlet V40P supplying the optimum amount of fresh air into the room. Operated by means of a handle situated in the lower part of the sash providing a two-step micro-opening facility. The sash can be rotated through 160º and blocked for washing with the use of a bolt

Fakro roof windows provide the highest standard in roof windows, offering knot free timber every time, high quality finishes and a 20 year guarantee

Fakro Roof Windows

Fakro roof windows are designed to provide a focal point for any room whether you use them individually or in combinations. Their stylish appearance is matched by the highest standard of manufacturing and finishing which means you can rest assured they will go on looking goos for years to come. Fakro Roof Windows offer a perfect combination of style, sustainability, security and long design life. To achieve such high performance involves ongoing refinement and improvement to every roof window that that Fakro designs.

Bigger glazing area and more light

The design of Fakro roof windows enables more light to be brought to any room. By placing the air inlet at the top of the frame, Fakro roof windows provide a glazing area up to 10% bigger than competitors products of the same size, in which the ventilation flap has been fitted in the sash. The operating handle in the base of the sash is always more convenient for the user.

Timber quality

The redwood pine that Fakro ues offers the clearest visual evidence of roof window quality. Not only does its close grain look stylish, timber comes from FSC certified sources. The double vacuum process using water-borne preservatives provideslasting dimensional stability and all windows are finished with three coates of environmentally freindly lacquer.

Windows for bathrooms, wetrooms and kitchens

Fakro offers two types of roof window for rooms in which high levels of humidity are created. You have the choice of either polyurethane-coated pine or PVC in white, golden oak and pine finishes. So, whether you want to match the existing windows and doors or have a smooth timber finish in white Fakro has the perfect solution. Fakro PVC veneers also achieve the highest level of measurable performance - Class A - EN12608

Automatic air ventilation in all windows

Many manufacturers use a standard manually operated vent which is inefficient, causing unnecessary heat loss.The Fakro V40P automatic vent which is installed in Fakro pine roof windows is activated by changes in atmospheric pressure. It provides the optimum balance of fresh air regardless of weather conditions

Exceptional security

Fakros Top Safe system provides peace of mind that our roof windows offer exceptional burglary resistance. In contrast to products which break simply by applying foot pressure, TopSafe provides additional hinge and lock reinforcement to prevent the sash from being forced. An EUStandard (EN13049) now means you can compare roof window security and all Fakro products achieve a minimum of Class 3. Fakro also manufactures a standard centre pivotwindow, the FTP-V P2 Secure,m which has security glazing.

The highest level of energy saving performance

What really sets Fakro roof windows apart is their low level of heat loss. Unlike some manufacturers who provide U-values just for glazing units, Fakro provides information for the whole window.

Warm glazing spacers

Many roof windows use metallic spacers to seperate panes and these encourage condensation to form by forming a cold 'bridge' between them. By contrast, Fakro uses only warm spacers in order to ensure that this otherwise common problem does not affect Fakro roof windows.

Ease of Installation

The easy to use 'bracket fix' installation system enables windows to be fitted either to rafters or battens. Windows can also be fitted onto sarking

Performance Guarantees

Whether buying natural pine, PU-coated pine or PVC Fakro offers a 10-year warranty for all windows and a 20 year warranty on glasing units.
