Fakro Tile Flashing Kit EZV-A
£83.00
Select a size
Select a option
 In Stock
 3 Working Days

Customer reviews
Sorry, no reviews available at the moment.


Fakro EZ roof window flashing is a general purpose roof window flashing for use on standard tile roofs.

  • For profiled roof coverings up to 45mm depth
  • Grey/brown RAL7022
  • Can be installed at any of 3 depths

EZ Flashing is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting. It is a universal flashing which can be applied not only to corrugated coverings but also to all roof coverings with a profile depth of up to 45mm.

As standard EZ flashing is applied to individual windows in the slope of the roof. It may also be used as flashing for windows used in combinations or groups:

— for “N” and “V” depths in horizontal, vertical, and block groups, — for depth “J” in horizontal combination only.

This flashing is available in three different types allowing windows to be installed at three different depths in the roof construction N(+3), V (0) and J (–3cm).

The standard installation of windows with the application of flashing EZ is V – version EZV-A.

Can be used in roofs with pitches:

from 15° to 90° for depths N and V, from 20° to 90° for depth J.

The flashing EZV-A XDP consists of standard EZV-A flashing and insulation set XDP. XDP consists of air-permeable collar and insulation which is made of specially impregnated sheep wool.



Constituents of the flashing: The flashing is made up of four basic elements (lower element, two sides elements and top element). The lower element is finished with an elastic apron which has a plastic mat glued to the underside thus allowing the flashing to             adhere to the roof covering for a neat fit. The flashing side-sealing channels             factory equipped with sponge seals provide protection against wind blown             dust, leaves, rain and snow. It also incorporates a weep flap which allows condensation to drain away from the window.

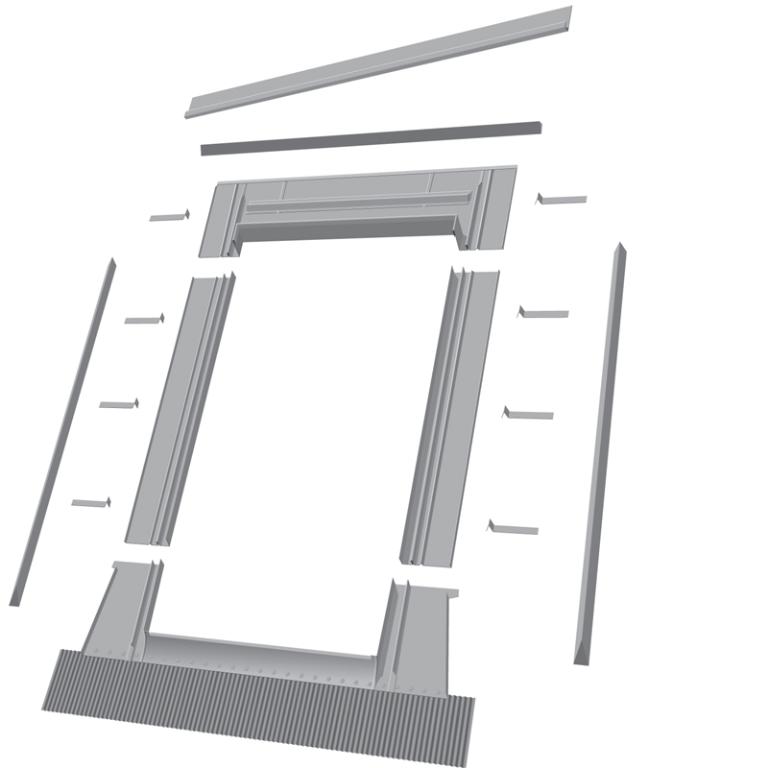

Flashing elements:

  1. bottom part of the flashing with an apron 165mm in length
  2. side parts
  3. aluminum strips to fix the flashing
  4. top part of the flashing
  5. gutter
  6. sponge seals



Fakro roof windows provide the highest standard in roof windows, offering knot free timber every time, high quality finishes and a 20 year guarantee

Fakro Roof Windows

Fakro roof windows are designed to provide a focal point for any room whether you use them individually or in combinations. Their stylish appearance is matched by the highest standard of manufacturing and finishing which means you can rest assured they will go on looking goos for years to come. Fakro Roof Windows offer a perfect combination of style, sustainability, security and long design life. To achieve such high performance involves ongoing refinement and improvement to every roof window that that Fakro designs.

Bigger glazing area and more light

The design of Fakro roof windows enables more light to be brought to any room. By placing the air inlet at the top of the frame, Fakro roof windows provide a glazing area up to 10% bigger than competitors products of the same size, in which the ventilation flap has been fitted in the sash. The operating handle in the base of the sash is always more convenient for the user.

Timber quality

The redwood pine that Fakro ues offers the clearest visual evidence of roof window quality. Not only does its close grain look stylish, timber comes from FSC certified sources. The double vacuum process using water-borne preservatives provideslasting dimensional stability and all windows are finished with three coates of environmentally freindly lacquer.

Windows for bathrooms, wetrooms and kitchens

Fakro offers two types of roof window for rooms in which high levels of humidity are created. You have the choice of either polyurethane-coated pine or PVC in white, golden oak and pine finishes. So, whether you want to match the existing windows and doors or have a smooth timber finish in white Fakro has the perfect solution. Fakro PVC veneers also achieve the highest level of measurable performance - Class A - EN12608

Automatic air ventilation in all windows

Many manufacturers use a standard manually operated vent which is inefficient, causing unnecessary heat loss.The Fakro V40P automatic vent which is installed in Fakro pine roof windows is activated by changes in atmospheric pressure. It provides the optimum balance of fresh air regardless of weather conditions

Exceptional security

Fakros Top Safe system provides peace of mind that our roof windows offer exceptional burglary resistance. In contrast to products which break simply by applying foot pressure, TopSafe provides additional hinge and lock reinforcement to prevent the sash from being forced. An EUStandard (EN13049) now means you can compare roof window security and all Fakro products achieve a minimum of Class 3. Fakro also manufactures a standard centre pivotwindow, the FTP-V P2 Secure,m which has security glazing.

The highest level of energy saving performance

What really sets Fakro roof windows apart is their low level of heat loss. Unlike some manufacturers who provide U-values just for glazing units, Fakro provides information for the whole window.

Warm glazing spacers

Many roof windows use metallic spacers to seperate panes and these encourage condensation to form by forming a cold 'bridge' between them. By contrast, Fakro uses only warm spacers in order to ensure that this otherwise common problem does not affect Fakro roof windows.

Ease of Installation

The easy to use 'bracket fix' installation system enables windows to be fitted either to rafters or battens. Windows can also be fitted onto sarking

Performance Guarantees


Whether buying natural pine, PU-coated pine or PVC Fakro offers a 10-year warranty for all windows and a 20 year warranty on glasing units.
